LYNCCN WAY100.80 V24 Hydraulic Press Brake Tools Single V Die
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype-Anwendung: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Produktname | WAY100.80 V24-Abkantpresse, Einzel-V-Matrize | V-eröffnen | V24 |
|---|---|---|---|
| Wärmebehandlung | Induktionsverhärtung | Winkel | 80 ° |
| Härte | HRC50 ± 2 | Breite | 35 mm |
| Verpackung | Holzkiste | Höhe | 120 mm |
| Max. Laden | 100T/m | Material | 42crmo |
| Hervorheben | custom brake dies,press brake bending dies |
||
Produkt-Beschreibung
Product Description:
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

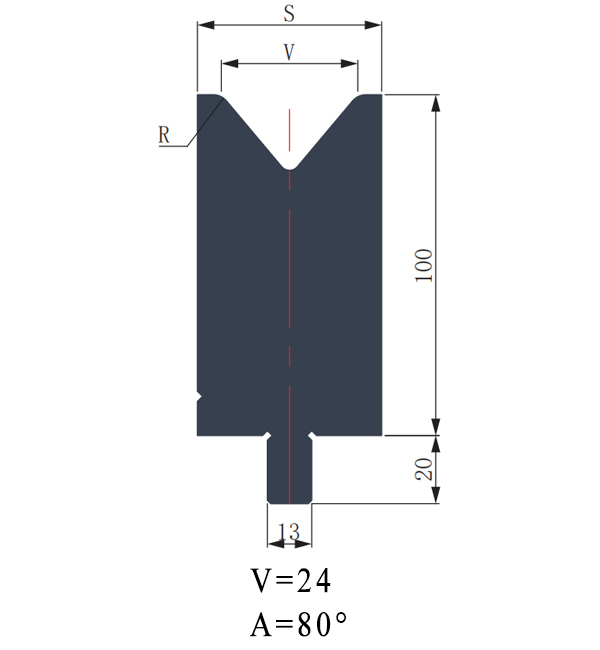

Technical Parameters:
| Product Type | Press Brake Single V Die |
| V-opening | V24 |
| Angle | 80° |
| Height | 120mm |
| Width | 35mm |
| Material | 42CrMo |
| Length | 550mm/500mm |
| Hardness | HRC50±2 |
| Heat Treatment | Induction Hardening |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Our hydraulic CNC press brake punches are suitable for a variety of application occasions and scenarios. They are commonly used in metalworking and fabrication industries for bending and shaping metal sheets. Our products are compatible with a range of press brake machines and are widely used in industries such as aerospace, automotive, construction, and shipbuilding.
