LYNCCN WAY100.30 V30 Custom Hydraulic Press Brake Tooling Single V Die
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype-Anwendung: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Produktname | LYNCCN WAY100.30 V30 Kundenspezifische hydraulische Abkantpresse, Einzel-V-Matrize | Marke | Lynccn |
|---|---|---|---|
| Produktkategorie | Pressebremse sterben | Höhe | 120 mm |
| Härte | HRC50 ± 2 | V Eröffnung | 30 mm |
| Breite | 55 mm | Material | 42crmo |
| Winkel | 30 ° | Verpackung | Holzkiste |
| Hervorheben | Custom Hydraulic Press Brake Tooling,V30 Hydraulic Press Brake Tooling,Hydraulic Press Brake Tooling |
||
Produkt-Beschreibung
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

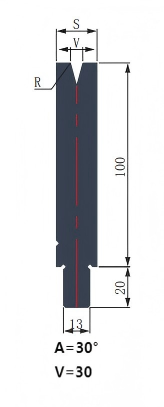

Technical Parameters:
| Product Type | Press Brake Die |
| Length | 550mm/500mm |
| Brand | LYNCCN |
| Width | 55mm |
| Height | 120mm |
| Angle | 30° |
| V Opening | 30mm |
| Hardness | HRC48-52 |
| Heat Treatment | Induction Hardening |
| Material | 42CrMo |
| Max. Load | 40T/M |
| Packing | Wooden Box |
| Delivery Time | 30 days |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Press brake tooling are widely used in sheet metal fabrication, enabling precise bending for enclosures, brackets, and panels across multiple industries including electronics, electrical, and custom parts manufacturing.
